GNGELECTRIC
USD 165
24V/36V 250W MID-DRIVE ELECTRIC BIKE KIT
Shipping:
Sea mail (7-8 Weeks) $62
Air mail (2-3 Weeks) $82
Speed post (3-7 days) $95
PRODUCT DESCRIPTION
This kit includes:
1x 24V/36V 250W brushed motor
1x 24V/36V 250W controller
1x Throttle
1x Extended bottom bracket spindle
1x Aluminium freewheel crank set
1x Bolts set
Freewheel clutch system allows you to pedal the bike without turning the motor. Meanwhile, you don't need to pedal while the motor is running.
Much higher efficiency than hub motor as you can shift gears. In addition, motor can run at high rpm (Most efficient) thanks to the reduction system.
You can pedal and use the motor at the same time to increase power.
Designed for all 68 mm bottom bracket bike, which is the commonest type bike frame.
Unlike conventional hub motor and side mounted kits, the center of gravity of mid drive kits are low and right in the middle of the frame. Thus, you can handle the bike comfortably and easily.
You can obtain high top speed and high torque for climbing hills by choosing the right gears.
Light weight: the freewheel crank system is made by aluminium alloy and the mounting bracket is simple and clean. Thus you will only add extra 2-3kg to your bike normally after replacing the old crank set and bottom bracket.
Easy to install: Only basic techniques are required and you can ask for our help online.
New upgraded aluminium alloy freewheel crank set
STEP-BY-STEP INSTALLATION GUIDE
Full Installation videos and reviews from our buyer (24V250W)
https://www.gngebike.com/apps/forums/topics/show/12784532-my-24v-250watt-mid-drive-mountain-e-bike
Step 1 – Prepare suitable tools
Basic tools including spanner, screw driver and crank puller are needed.
Step 2 – Make sure your bike is suitable for the kit
To install the kit, the bike should have 68mm BB. If your bike have 73mm BB,please contact us for the 73mm BB. Also note the place of suspension joint. This kit cannot be installed easily if the suspension joint is behind of the BB. Finally make sure the existing brake can handle the extra power.
Step 3 – Remove the crank set
You MUST use a crank puller to remove the crank. The removing procedures are as follow.(From left to right)
Step 4 – Remove the old bottom bracket
For unsealed BB, use a large spanner to unscrew the BB cap on the crank side.
For bearing sealed BB, use bottom bracket tool to unscrew.
(Important: the thread on the right hand side is anti-thread! Turn clockwise to unscrew.)
Step 5 – Replace the spindle
Replace the spindle with a longer one that included in the kit.
Step 6 – Mounting the motor bracket.
Make sure the crank wheel and the motor sprocket line on the same plane. If not, use some metal rings or BB spacer in between the bike and motor plate to align chain.
Step 7 – Connecting the wires
Plug in the corresponding plastic connector for throttle and controller. Connect the controller to the batteries. Then make final inspection and adjustments, and you are ready to go!

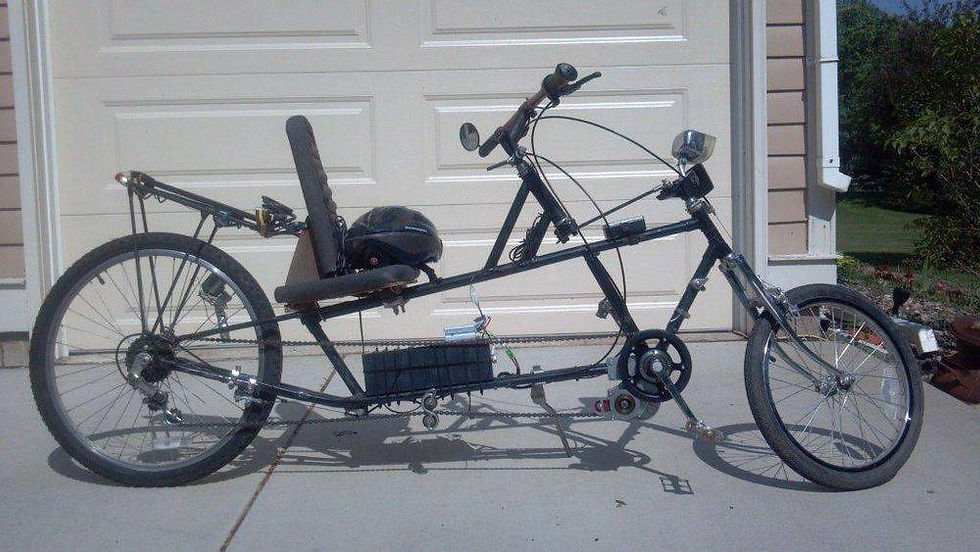

Complete conversion (24V/36V 250W/350W MID-DRIVE KIT)
